Product Introduction
The achromatic scanning mirror has a unique achromatic design and is used for color correction of imaging at different wavelengths. The focal length, working distance, and focal spot are consistent for the laser working wavelength and the visible light wavelength. It can overlap the working focal plane of the 1064nm band laser with the visible light focal plane of the CCD monitor, thereby achieving clear CCD full field of view (coaxial vision) capture. Generally, low-dispersion crown glass and high-dispersion flint glass are combined to correct chromatic aberration.

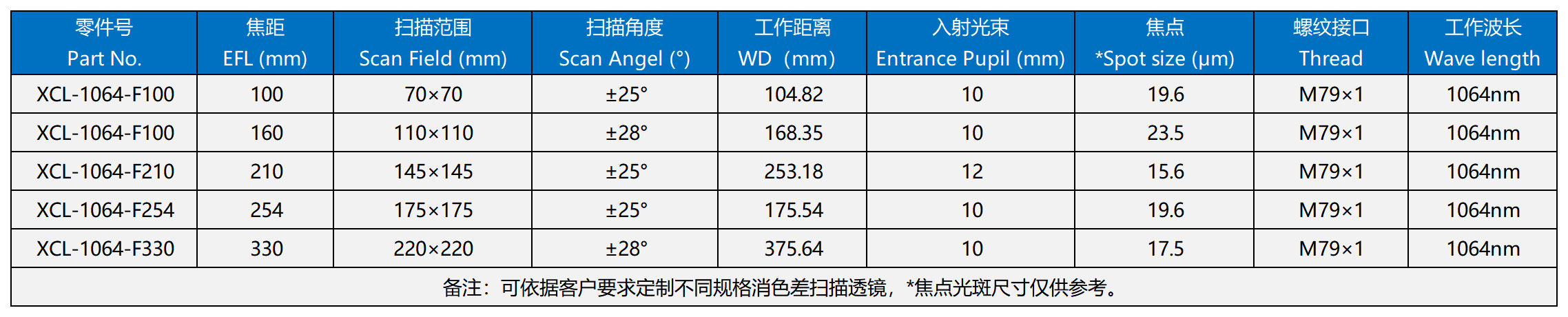

Technical parameter diagram
