Product Features
1. Fast welding speed, high repeat positioning accuracy, small temperature drift after long-term operation, and rich scanning graphics;
2. The internal cavity is completely sealed, with a double air knife structure design, efficient dust prevention, and effective avoidance of optical device pollution;
3. Overload, overcurrent and reverse connection protection design are adopted, and the operation is more reliable;
4. The electromagnetic compatibility optimization design is adopted, with high signal-to-noise ratio and strong anti-interference ability;
5. The overall circulation water cooling design makes the operation more stable and reliable;
6. Modular design, a variety of optical configurations and accessories are available to meet the application needs of different industries.
Product Application
Two dimensional laser scanning galvanometers are widely used in industries such as laser etching, online flight marking, laser drilling, laser welding, laser cutting, additive manufacturing, 3D printing, and medical beauty.

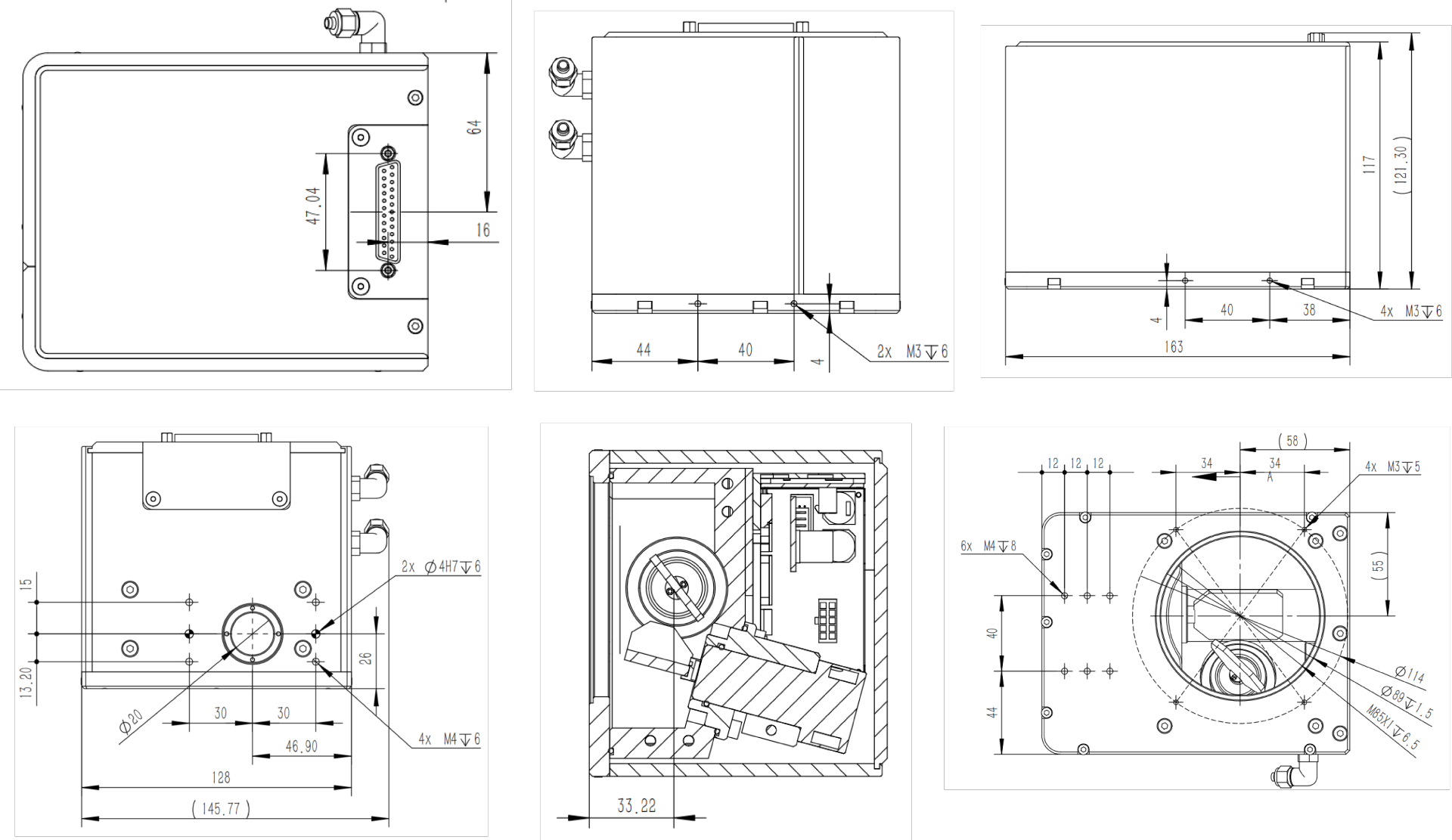

Product dimensions
Product parameters
| Model 型號 | X20-RF02 |
| Maximum carrying optical power 最大承載光功率 | 2000@1064nm CW |
| Optical aperture 通光孔徑 | Ф20mm |
| Collimate focal length (FC) 準直焦距(FC) | 75mm/100mm/125mm |
| F-Theta field lens focal length (FL) F-Theta場鏡焦距(FL) | 160mm/210mm/254mm/330mm |
| Scanning format掃描幅面 | 110*110mm,150*150mm,175*175,220*220mm |
| Dynamics 動態(tài)性能 | |
| Tracking error 跟蹤誤差 | <0.35ms |
| Processing accuracy加工精度 | 6.0m/s |
| Positioning speed 定位速度 | 12.0m/s |
| 1% Full stroke step response time 1%滿行程階躍響應時間 | 0.8ms |
| 10% Full stroke step response time 10%滿行程階躍響應時間 | 2.5ms |
| Accuracy and stability 精度及穩(wěn)定性 | |
| Repetitive positioning accuracy (RMS) 重復定位精度(RMS) | <2 μrad |
| resolution ratio 分辨率 | 16 bit |
| Nonlinearity 非線性度 | <0.9 mrad/44o |
| Maximum gain drift 最大增益漂移 | <15 ppm/K |
| Maximum position drift 最大位置漂移 | <10 μrad/k |
| 8-hour long drift 8小時長時間漂移 | < 0.3 mrad |
| Optical performance 光學性能 | |
| Scan angle 掃描角度 | ±0.393 rad |
| Gain error 增益誤差 | <5 mrad |
| Zzero error 零點誤差 | <5 mrad |
| Gerneral parameters 通用參數 | |
| Power supply 電源 | ±15v DC,max 3A |
| Communication protocol 通訊協(xié)議 | XY2-100 |
| Operation temperature 工作溫度 | 0°c-45°c |
| Storage temperature 存儲溫度 | -10°c~60°c |
| Total weight 總重量 | about 6.5kg |
| Water cooling control 水冷控制 | |
| Cooling water 冷卻水 | purified water |
| Water temperature 水溫 | 22°c~28°c |
| Maximum water pressure 最大水壓 | <0.3 bar |
| Flow and pressure drop 流量&壓降 | 21/min&0.4 bar,41/min&0.8 bar,61/min & 1.2 bar |
