Product Features
1. Adopting FPGA based digital driving technology, it has excellent anti-interference ability and dynamic performance.
2. Adopting imported high-precision grating ruler and encoder, with low noise, low temperature drift, and high linearity.
3. Adopting overload, overcurrent, and reverse protection design, the operation is more reliable.
4. Compatible with XY2-100 and SPI (position closed-loop control) communication protocols.
5. Multiple wavelength ranges of 10mm lenses can be selected to meet the needs of various industries.
6. Compact in size, compact in design, and lightweight.
Product Application
Two-dimensional laser scanning galvanometers are widely used in laser etching, online flight marking, laser drilling, laser welding, laser cutting, additive manufacturing, 3D printing, medical beauty and other industries.

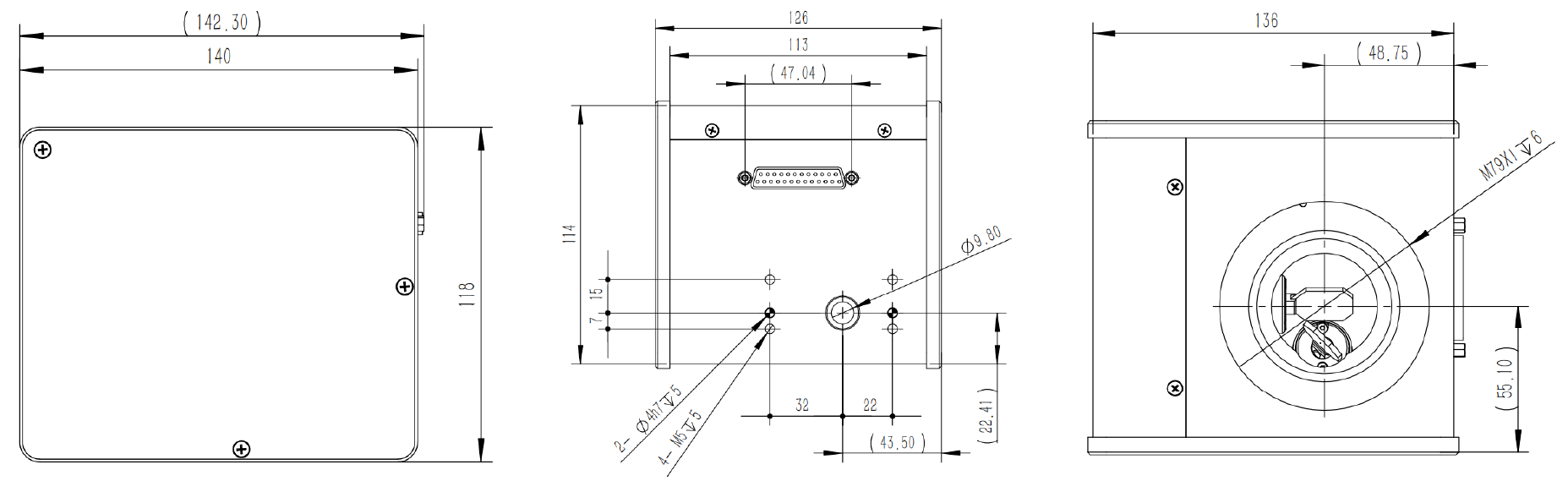

Product dimensions
Product parameters
| Dynamics 動態性能 | |
| Optical aperture 通光孔徑 | Ф10mm |
| Tracking Error 跟蹤誤差 | <0.15 ms |
| Marking speed 打標速度 | 5.0 m/s |
| Positioning speed 定位速度 | 20.0m/s |
| Write speed 寫入速度 | 800 cps |
| 1% full stroke step response time 1%滿行程階躍響應時間 | 0.2ms |
| 10% full stroke step response time 10%滿行程階躍響應時間 | 0.6ms |
| General parameters 通用參數 | |
| Power Supply 電源 | ±15VDC ,MAX 3A |
| Communication Protocol 通訊協議 | XY2-100/SPI |
| IP rating IP等級 | IP65 |
| Working temperature 工作溫度 | 0°c~45 °c |
| Storage temperature 存儲溫度 | -10 °c~60 °c |
| External dimensions 外形尺寸 | 140mm*126mm*118mm |
| Weight 重量 | about 2.2kg |
| Accuracy and stability 精度及穩定性 | |
| Repetitive positioning accuracy (RMS) 重復定位精度(RMS) | <5 μ rad |
| resolving power 分辨率 | 16 bit |
| Nonlinearity 非線性度 | <0.9mrad/44° |
| Maximum gain drift 最大增益漂移 | <30 μ rad/k |
| Maximum position drift 最大位置漂移 | <80 ppm/K |
| 8-hour long drift 8小時長時間漂移 | <0.3 mrad |
| Optical performance 光學性能 | |
| Scanning angle 掃描角度 | ±0.396 rad |
